Summary:
- Location: Coquina Key, St. Petersburg, Florida (Pinellas County)
- The Problem: A two-story home built before 1990 experienced significant flooding and Crawl Space damage during a hurricane. Heavy water intrusion caused foundation settlement, shifting support elements, and sloping floors throughout the home. Previous attempts to supplement failing concrete block piers with wood posts and shims did not adequately support the structure.
- The Solution: Florida Ram Jack installed 13 proprietary 2-7/8″ helical piles in three separate foundation repair zones beneath the home, along with 68 linear feet of supplemental steel I-beams to provide engineered support for the crawl space foundation.
Crawl Space Foundation damage after a hurricane is a common concern for homeowners across coastal Florida. In areas like Coquina Key in St. Petersburg, prolonged flooding and heavy water intrusion can compromise crawl space foundations, weaken support systems, and lead to uneven floors throughout the home.
Recently, Florida Ram Jack was called to inspect a two-story home in Coquina Key that had experienced substantial hurricane-related flooding. After a comprehensive free foundation inspection, our team identified foundation settlement and support deficiencies beneath the structure. Through an engineered repair plan utilizing helical piles and supplemental steel I-beams, we helped restore structural support beneath the home.

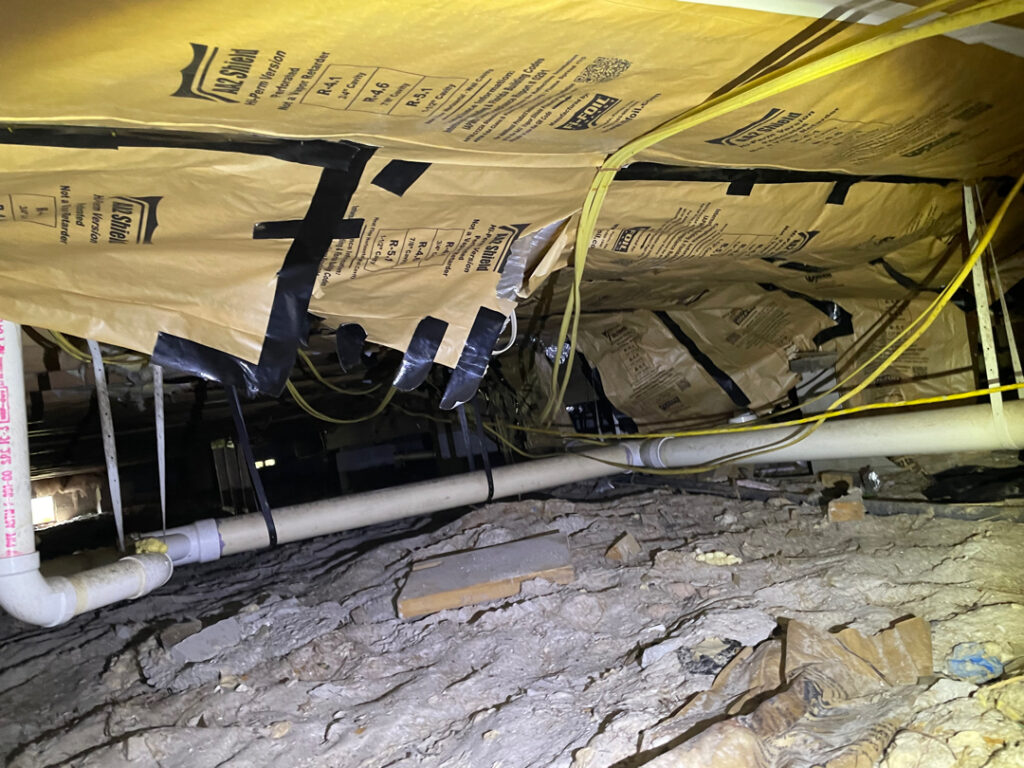

The foundation under the home in the crawlspace is compromised from the significant hurricane flooding event
How Can Hurricane Flooding Damaged a Crawl Space Foundation?
Hurricane flooding damages crawl space foundations by saturating, eroding, and shifting the underlying load-bearing soils. When large amounts of water intrude beneath a home, the ground loses its structural integrity, causing the foundation elements to sink unevenly under the weight of the house.
When large amounts of water saturate the ground, soils may soften, erode, or lose their ability to adequately support structural loads. As these soils shift or compress, portions of the foundation can settle unevenly, causing floor slopes, structural movement, and support failures. For this Coquina Key home, extensive flooding from a hurricane likely contributed to the foundation movement observed throughout the crawl space.
What Warning Signs Indicate Hurricane-Related Foundation Settlement?
The most common warning signs of hurricane-related foundation settlement include sloping floors, shifting support piers, sticking doors, interior drywall cracks, and visible movement beneath the home. These symptoms indicate that the structural load of the building is no longer evenly distributed due to soil movement below.
In this case, the homeowner noticed uneven floor elevations and foundation movement after significant flooding events. During our inspection, we also discovered that several concrete block piers had previously been supplemented with wood posts and shims. While these additions may have been intended to provide extra support, they were unable to adequately address the underlying foundation movement occurring beneath the structure.

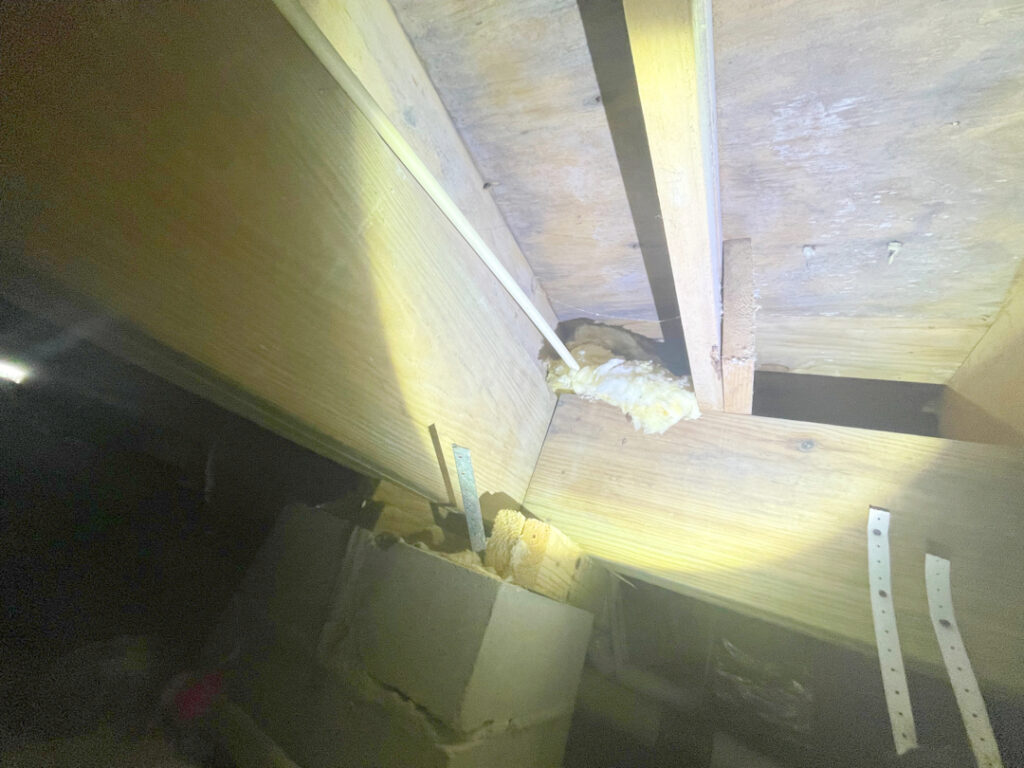

Previous wooden shims were unsuccessful at reinforcing the foundation
How Did Florida Ram Jack Evaluate the Foundation Problem?
Florida Ram Jack evaluates complex foundation problems through a thorough on-site physical inspection combined with an expert engineering review. Our specialists analyze the crawl space elevations, assess existing pier integrity, and develop a customized, permitted repair plan that meets local structural building standards.
After performing a comprehensive evaluation of the crawl space, our team determined that the home’s support system required a more robust solution than temporary wood supports. Because structural repairs were necessary, engineering plans and documentation were prepared and the appropriate permits were obtained before installation began. This process ensured the repair plan addressed the home’s unique structural requirements while meeting local building standards.
What Foundation Repair Solution Was Installed?
The foundation repair solution installed consisted of 13 proprietary deep foundation helical piles and 68 linear feet of supplemental steel I-beams. This system was deployed across three distinct structural zones beneath the crawl space to secure the settling areas.
The repair plan focused on three separate areas beneath the crawl space where foundation movement and support deficiencies were identified. Our team installed:
- 13 Ram Jack proprietary 2-7/8″ helical piles
- 68 linear feet of supplemental steel I-beams
- Engineered support connections between the new steel beams and deep foundation elements
By transferring structural loads deeper into competent supporting soils, the system provides long-term support for the home’s foundation.

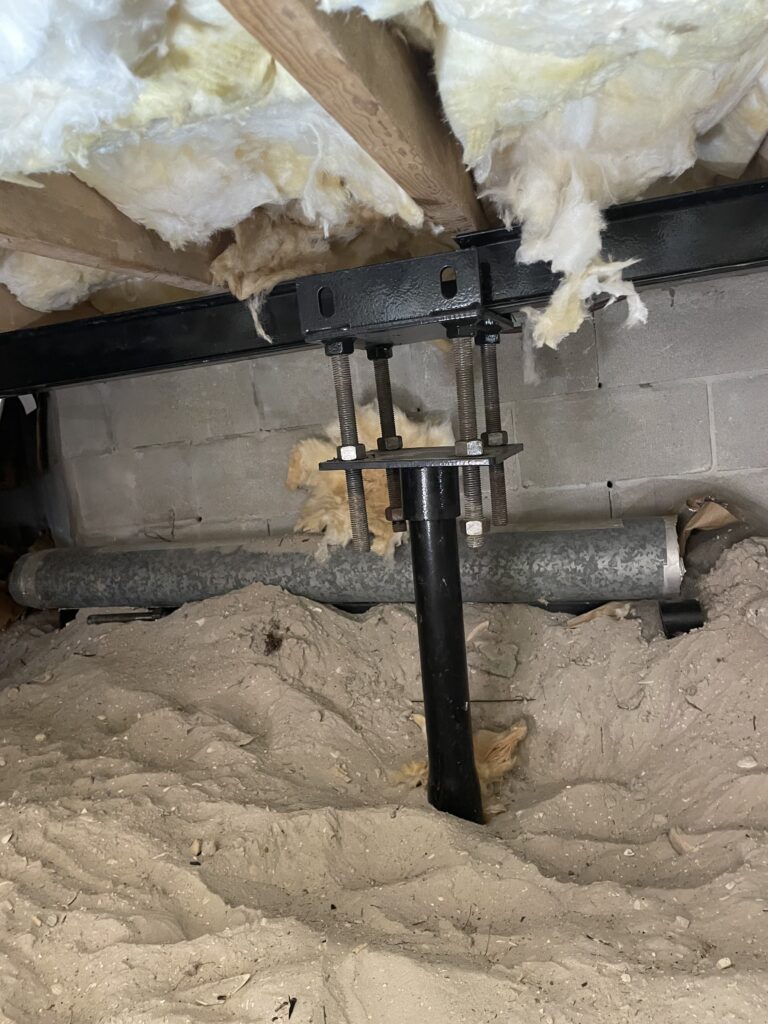

Florida Ram Jack’s proprietary helical piles were driven down deep into bedrock to properly reinforce and recover the foundation.
Why Are Helical Piles Effective for Foundation Repair?
Helical piles are highly effective because they bypass weak, water-saturated surface soils to anchor the home into deep, stable load-bearing strata. By shifting the weight of the structure away from unstable topsoil, they prevent future shifting caused by environmental changes or coastal flooding.
Florida Ram Jack’s proprietary patented 2-7/8″ helical piles achieve an ultimate capacity of 26,084 pounds when installed at a torque of 2,898 ft-lbs and a pressure of 1,000 psi. This engineered approach makes them an effective solution for many homes experiencing settlement caused by soil movement, flooding, or long-term foundation distress. Because installation occurs with controlled torque monitoring, the installation process also provides valuable engineering data regarding pile performance.
Why Were Supplemental Steel I-Beams Needed?
Supplemental steel I-beams were required to bridge the gaps between foundation repair zones, distribute structural weight evenly, and reinforce sagging floor joists. They replace the unengineered, failing wood shims and concrete blocks to build a durable, heavy-duty support grid.
For this project, 68 feet of supplemental steel I-beams were installed to provide additional support beneath portions of the structure affected by settlement and storm-related damage. These beams work together with the helical pile system to create a stronger support network beneath the home. The combination of deep foundation support and structural steel reinforcement allowed our team to address multiple areas of concern throughout the crawl space.

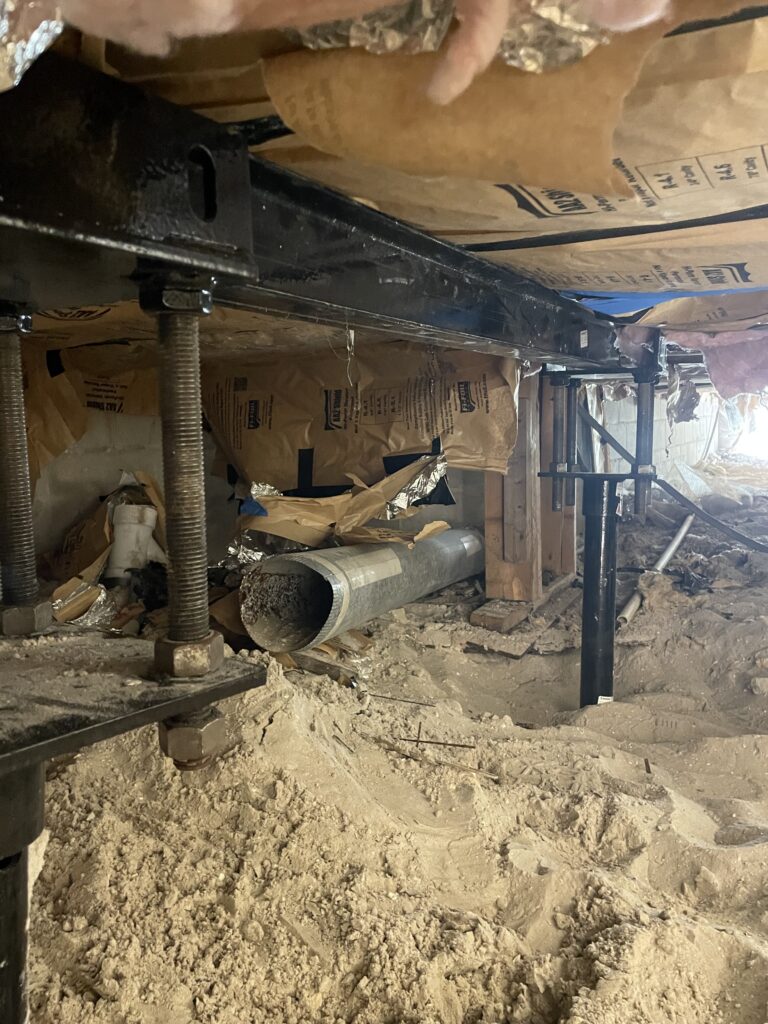

Supplementary metal i-beams supported by Florida Ram Jack’s engineered helical piles system
What Did the Homeowner Think About the Project?
The homeowner was exceptionally satisfied with the speed, professionalism, and execution of the structural repair crew. Clear communication from the crew leader provided the homeowner with peace of mind throughout the recovery process.
Positive feedback like this reflects the professionalism, communication, and attention to detail our crews strive to provide on every project.
Why Should Florida Homeowners Address Foundation Damage After a Hurricane?
Florida homeowners must address hurricane foundation damage quickly because unbacked structural settlement worsens over time as soils continue to shift. Delaying an evaluation can lead to costlier secondary structural damage, ruined flooring, and severe framing misalignment.
When flooding causes soil movement or support failures beneath a home, additional movement can continue over time if repairs are delayed. Early evaluation allows homeowners to understand the extent of the problem and determine whether engineered repairs may be needed before further damage develops. If your home has experienced flooding, foundation settlement, sloping floors, or crawl space support issues, scheduling a professional inspection can help identify potential concerns before they become more extensive.
Need Foundation Repair in St. Petersburg or Pinellas County?
Florida Ram Jack provides engineered foundation repair solutions throughout St. Petersburg, Pinellas County, and surrounding Florida communities. Whether your home has experienced severe storm damage, crawl space settlement, or structural movement, our team can perform a detailed inspection and recommend a tailored plan to reinforce your property.
Contact Florida Ram Jack today to schedule your free foundation inspection and learn more about our long-term, durable foundation repair systems.
Frequently Asked Questions
Yes. Excessive water can weaken, erode, or compress supporting soils beneath a home, potentially leading to structural movement and settlement.
Common signs include uneven floors, visible floor slopes, sticking doors, interior drywall cracks, and deterioration beneath the crawl space.
Helical piles transfer structural loads deeper into suitable supporting soils, helping provide long-term support beneath foundations affected by settlement.
Steel I-beams help distribute loads and reinforce structural areas where existing supports may no longer provide adequate performance.
Inspection times vary depending on the property, but most residential foundation evaluations can be completed within a few hours.
Yes. Florida Ram Jack provides free foundation inspections to help homeowners identify potential foundation and crawl space concerns.
